A sheet that resists corrosion can still fail when water enters an open lap, surrounds a mismatched fastener or remains trapped behind the panel. By comparing the material, its forming purpose, the alternatives and the installation details, you can specify a board that suits Mumbai’s rain, humidity, coastal salt and maintenance conditions.
Key takeaways
- Confirm whether the quoted caul board is solid aluminium, embossed, flat, or composite.
- Compare drainage, corrosion resistance, stiffness, repairability, and total lifecycle cost.
- Specify alloy, temper, thickness, finish, flatness, tolerances, and inspection documents.
- Check joint sealing, edge protection, storage, delivery packaging, and replacement lead times.
What “caul board” means before you compare materials
“Caul board” is not a material grade. The quoted aluminium caul board sheet may be a solid embossed sheet used as a caul plate, a flat forming tool, or a trade name for a flat or composite tooling panel. Before comparing aluminium caul board sheet in mumbai with alternatives, identify its construction and process.
| Market meaning | What you may receive | Fair comparison |
|---|---|---|
| Embossed caul plate | Solid aluminium with raised pattern | Emboss depth, pitch and working-face condition |
| Flat tooling panel | Flat aluminium sheet | Thickness, flatness and support spacing |

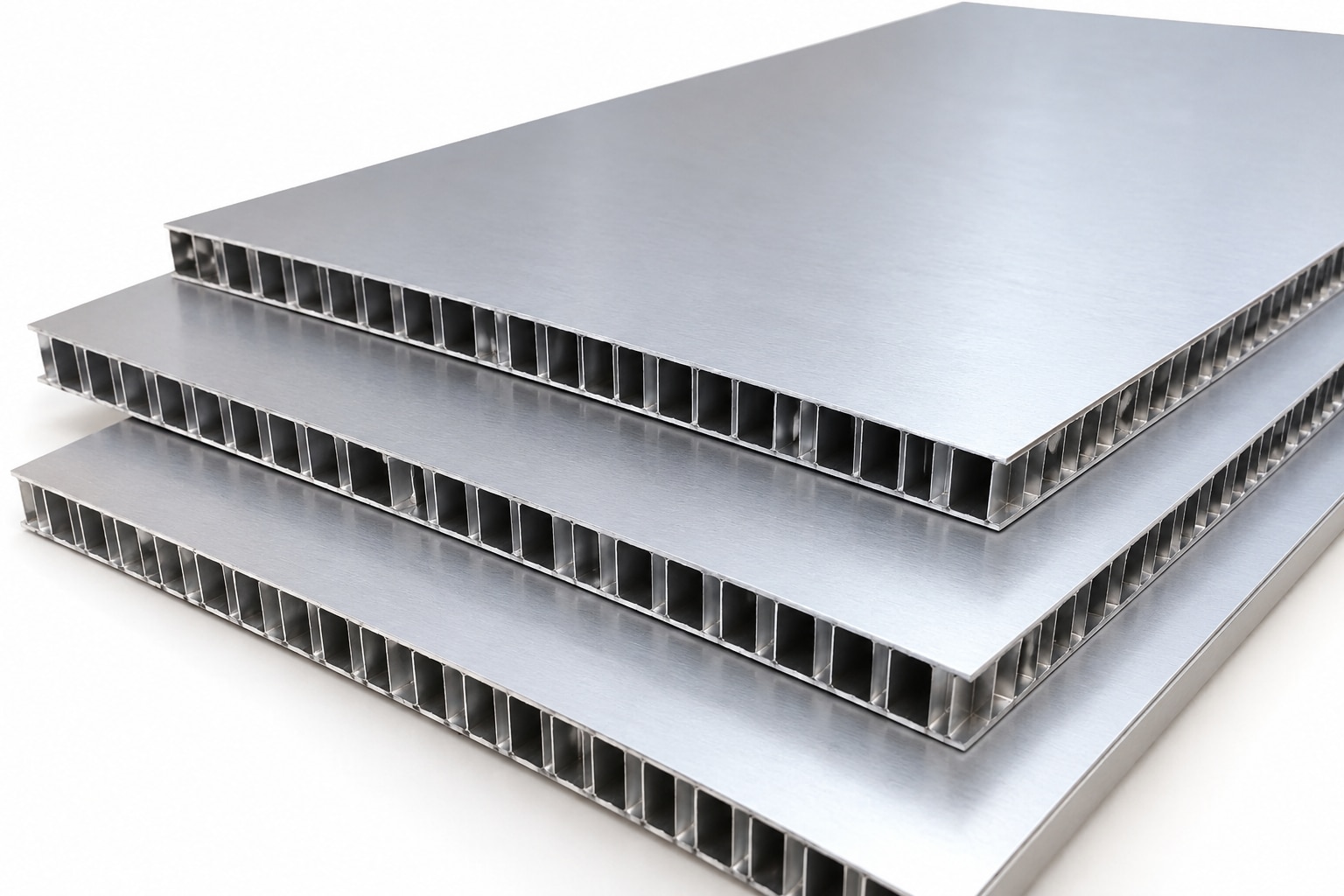

| Composite tooling panel | Aluminium-faced board with a core | Face thickness, core, bonding and temperature limit |
Require the seller to state:
- Alloy and temper
- Nominal thickness and tolerance
- Sheet dimensions
- Emboss depth and pitch
- Surface finish and flatness tolerance
- Intended process and operating temperature
Embossing increases apparent bending stiffness and provides a more damage-tolerant working face, but a thin embossed sheet is not equivalent to a thicker flat plate. For a platform, formwork skin or reusable tooling surface, compare unsupported span, edge restraint and impact loads.
Aluminium caul board sheet applications include vacuum-bag work, laminates, adhesive work, heated fabrication and temporary forming. The application sets the specification: check burrs, sharp emboss peaks, release-agent compatibility, oil and oxide debris. A face touching laminate can transfer pattern marks, while a damaged edge can puncture a vacuum bag.
How the alternatives behave under Mumbai monsoon exposure
Driving rain, chloride-laden coastal air, high humidity, ponding, wind-blown grit and shaded damp corners expose every weakness in a panel assembly. The best aluminium caul board sheet for monsoon in Mumbai still fails if laps, penetrations or drainage trap water.
| Option | Monsoon behaviour | Main trade-off |
|---|---|---|
| Aluminium caul board | Tougher or stiffer working surface; resists rain and grit when edges drain | Pattern, burrs and trapped moisture need control |
| Plain aluminium sheet | Simple flat face for cutting, bending and sealing; good corrosion resistance | Less stiffness across an unsupported span |
| Corrugated aluminium | Ribs improve drainage and span-related stiffness | Corrugations complicate sealing and cleaning |
| PVC-coated aluminium | Protected decorative surface in humid, salty air | Scratches expose metal; cut edges remain vulnerable |
| Galvanised steel | High strength and useful impact resistance | Zinc coating and cut edges need protection; rust follows damage |
| Stainless steel | Higher corrosion resistance in coastal exposure and wet shade | Higher handling, cutting and fabrication demands |
| Fibre-cement board | Rigid and suitable for fire-related project requirements | Heavier handling; joints and edges need careful water detailing |
| Marine plywood | Easy to machine and fasten | Recurring edge sealing; ponding causes swelling |
| Exterior-grade ACP | Lightweight cladding option | Check core, joint design and fire classification before selection |
A weather resistant aluminium board in Mumbai is not waterproofing. Every option still needs sloped drainage, sealed seams, flashings, protected penetrations and compatible fixings. Thickness alone cannot stop galvanic corrosion between aluminium and copper, steel or stainless steel, nor can it dry water trapped in a joint.
The specification and lifecycle checklist that prevents a false bargain
Put a completed comparison sheet beside every quotation for aluminium caul board sheet in mumbai. Request the alloy and temper, not “marine grade”: 5052 suits formed, corrosion-resistant, weldable sheet; 3003 suits general forming; 6063 identifies an extrusion alloy, not a sufficient sheet specification.
| Record | What to compare |
|---|---|
| Alloy, temper, thickness and tolerance | Actual sheet identity, not marketing terms |
| Size, flatness, edge wave and oil-canning | Sagging, permanent set and pattern accuracy |
| Impact resistance, design load and unsupported span | Required support and damage risk |
| Bend radius and service temperature | Fabrication limits and operating life |
| Heated use | 23 × 10⁻⁶/K expansion, exposed-edge heat loss and temperature uniformity |
| Finish | Mill finish, anodized, liquid-painted or coil-coated; pretreatment, dry-film thickness and colour warranty |
Compare the full work burden for every alternative: cutting, drilling, deburring, bending, sealing, painting, repainting, cleaning, replacement and handling. A cheaper sheet is not cheaper if it needs extra supports, edge sealing or frequent recoating.
For each option, record impact and thermal behaviour alongside these tasks; do not invent labour savings. Store sheets off the floor on dry supports, protect edges, and prevent moisture becoming trapped beneath film or between stacked sheets. This evidence exposes the false bargain before installation.
Installation details and failure points that decide monsoon performance
A weather resistant aluminium board in Mumbai becomes rain-resistant only through its installation details, not the sheet alone. Build the assembly as follows:
1. Give the panel a positive slope and lead water to open drainage. Orient every lap with the water flow, seal penetrations with neutral-cure sealant, and use compatible fasteners with EPDM washers.
2. Keep ventilation and drainage paths behind the panel. Do not leave pockets where rainwater, dirt or cement slurry can collect; trapped moisture accelerates pitting and crevice corrosion.
3. Isolate aluminium from copper, bare or poorly protected steel, stainless steel trapped in wet crevices, treated timber and cement-contaminated surfaces. Use separators, compatible washers or specified protective coatings; extra thickness will not prevent galvanic corrosion.
4. Deburr cut edges and apply the specified edge treatment wherever exposure requires it. Protect laps, folded returns and fastener holes, which receive concentrated moisture and chloride deposits.
5. Allow movement from heating and cooling. Aluminium expands about 23 × 10⁻⁶/K, so use slotted holes, floating clips or designed movement joints instead of rigidly fixing every edge.
6. Inspect after heavy rain for galvanic attack around fasteners, white aluminium oxide staining, coating blisters, open laps, trapped water, oil-canning, loose fixings and blocked drains.
Keep wet mortar off anodized finishes; alkaline residue attacks them. Aggressive cleaners also damage anodizing. Remove cement promptly with a finish-compatible cleaning method when installing an aluminium caul board sheet for monsoon in Mumbai.
How to compare a Mumbai supplier’s quotation and delivery controls
A quotation from a monsoon aluminium sheet supplier in Mumbai is incomplete without material and delivery evidence. Ask for:
- The mill certificate or test certificate naming alloy, temper, actual thickness, thickness tolerance, sheet dimensions and batch number.
- The finish, protective-film specification and batch traceability from dispatch to delivery.
- The cutting and deburring method, stacking supports, rain protection during transport and sheet identification after unloading.
- A replacement process for damaged coating, permanent set, oil-canning, edge wave or out-of-tolerance flatness.
- Confirmation of the specified bend radius, edge treatment, slotted-hole design and fabricated flashing, rather than stock sheets alone.
Reject “monsoon grade”, “marine grade” and “weatherproof” unless each term identifies the metal, temper and coating requirements.
| Supplier evidence | Acceptable control | Reject |
|---|---|---|
| Material | Certificate matches each lot | Vague alloy claim |
| Delivery | Dry, covered transport; labels intact | Wet packs or mixed batches |
| Fabrication | Deburred edges and documented tolerances | Uncontrolled cutting |
| Remedy | Written replacement inspection and timeline | “Use as received” |
A Mumbai buyer can assess Aluminium World alongside other suppliers by comparing documented material control and fabrication support, not local availability or a low per-kilogram quotation. Choose caul board when its working surface, forming use, thermal behaviour and support design justify it; choose another material when fire, span, finish, weight or maintenance requirements point elsewhere.
Related products
 | Aluminium Products Aluminium Caul Board Sheet is a durable and versatile sheet used in construction, industrial fabrication, and marine applications. View product → |
 | Aluminium Sheet Minimum Order Quantity: 100 Kg Thickness of Sheet 5 mm Material Aluminium Surface Treatment Color Coated Width 950 mm Color Silver Is It Water Proof... View product → |
Frequently asked questions
What does “caul board” mean when buying an aluminium sheet?
Caul board is a use or trade term, not a material grade. Confirm whether the quotation covers a solid embossed sheet, flat forming tool, or composite tooling panel.
How should you compare aluminium caul board with alternatives during Mumbai monsoon?
Compare each material’s water exposure, corrosion behaviour, stiffness, dimensional stability, surface durability, drainage needs, maintenance, and replacement difficulty.
Which specifications should appear in a Mumbai aluminium caul board quotation?
Request the alloy, temper, thickness, sheet dimensions, flatness, surface finish, embossing pattern, tolerances, edge condition, packaging, inspection documents, and delivery date.
What installation details prevent monsoon failure?
Provide drainage, avoid water traps, protect cut edges, use compatible fasteners, seal joints correctly, allow for movement, and store sheets off the ground under ventilation.
How can you compare quotations from Mumbai suppliers?
Compare the exact construction and specification, included fabrication, corrosion and finish documentation, packaging, delivery controls, replacement terms, and lead time rather than price alone.
